1B9 90°弯 英管外螺纹60°内锥
产品详情

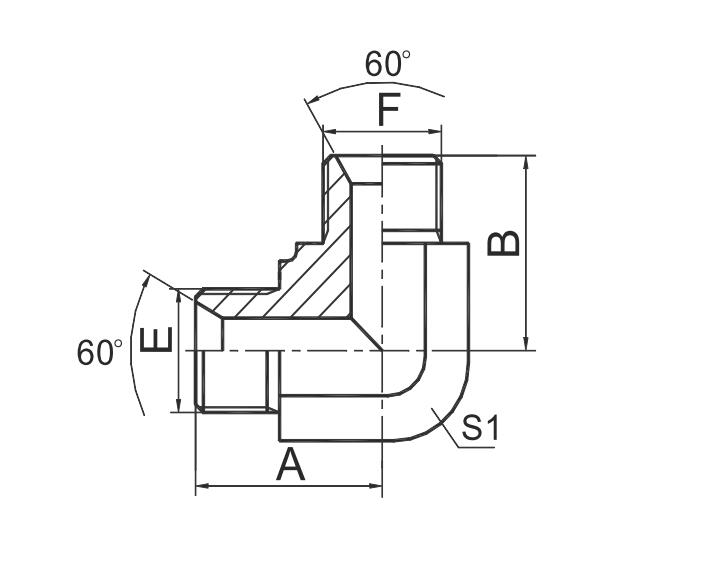

1B9 90弯 英管外螺纹60度内锥
| 代号 PART NO. |
螺纹 THREAD | 尺寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|
| E | F | A | B | S1 | ||
|
1B9-02
|
G1/8′′X28
|
G1/8′′X28
|
19.8
|
19.8
|
11
|
|
|
1B9-04
|
G1/4′′X19
|
G1/4′′X19
|
24.5
|
24.5
|
14
|
|
|
1B9-06
|
G3/8′′X19
|
G3/8′′X19
|
27.5
|
27.5
|
16
|
|
|
1B9-08
|
G1/2′′X14
|
G1/2′′X14
|
34.5
|
34.5
|
22
|
|
|
1B9-10
|
G5/8′′X14
|
G5/8′′X14
|
38
|
38
|
22
|
|
|
1B9-12
|
G3/4′′X14
|
G3/4′′X14
|
40
|
40
|
27
|
|
|
1B9-16
|
G1′′X11
|
G1′′X11
|
46
|
46
|
33
|
|
|
1B9-20
|
G1.1/4′′X11
|
G1.1/4′′X11
|
50.5
|
50.5
|
41
|
|
|
1B9-24
|
G1.1/2′′X11
|
G1.1/2′′X11
|
57.5
|
57.5
|
48
|
|
