20511公制内螺纹24°锥O重系列
产品详情

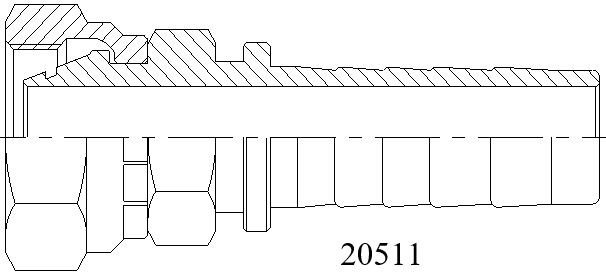

公制内螺纹24°锥带O型圈重系列
METRIC FEMALE 24°CONE O-RING H.T.
ISO 12151-2—DIN 3865
METRIC FEMALE 24°CONE O-RING H.T.
ISO 12151-2—DIN 3865
| 代 号 | 螺纹 E | 软 管 HOSE BORE | 管子外径 | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|---|
| PART NO. | THREAD E | 公称内径 DN | 标号 DASH | TUBE O.D. | L | S1 | |
|
20511-14-04T
|
M14X1.5
|
6
|
04
|
6
|
23.5
|
17
|
|
|
20511-16-04T
|
M16X1.5
|
6
|
04
|
8
|
24
|
19
|
|
|
20511-16-05T
|
M16X1.5
|
8
|
05
|
8
|
24
|
19
|
|
|
20511-18-04T
|
M18X1.5
|
6
|
04
|
10
|
25
|
22
|
|
|
20511-18-05T
|
M18X1.5
|
8
|
05
|
10
|
25
|
22
|
|
|
20511-18-06T
|
M18X1.5
|
10
|
06
|
10
|
25
|
22
|
|
|
20511-20-06T
|
M20X1.5
|
10
|
06
|
12
|
28.5
|
24
|
|
|
20511-20-08W
|
M20X1.5
|
13
|
08
|
12
|
25.5
|
24
|
|
|
20511-22-06T
|
M22X1.5
|
10
|
06
|
14
|
25.5
|
27
|
|
|
20511-24-06T
|
M24X1.5
|
10
|
06
|
16
|
29.5
|
30
|
|
|
2051124-08T
|
M24X1.5
|
13
|
08
|
16
|
30
|
30
|
|
|
20511-30-10T
|
M30X2
|
16
|
10
|
20
|
34
|
36
|
|
|
20511-30-12T
|
M30X2
|
19
|
12
|
20
|
35
|
36
|
|
|
20511-36-12T
|
M36X2
|
19
|
12
|
25
|
32
|
46
|
|
|
20511-36-16T
|
M36X2
|
25
|
16
|
25
|
36
|
46
|
|
|
20511-42-12T
|
M42X2
|
19
|
12
|
30
|
36
|
50
|
|
|
20511-42-16T
|
M42X2
|
25
|
16
|
30
|
36
|
50
|
|
|
20511-42-20W
|
M42X2
|
32
|
20
|
30
|
34.5
|
50
|
|
|
20511-52-20T
|
M52X2
|
32
|
20
|
38
|
36
|
60
|
|
|
20511-52-24T
|
M52X2
|
38
|
24
|
38
|
38
|
60
|
|
